The underground car park leaflet is more than just a handout for our intensive course. It takes the concept of our teaching posters and translates it into a compact format for on-site training. The texts are reduced to a few words and provide the crucial keywords for the illustrations in German, English, French and Italian. Photographs from actual operations, our training operations and installations in underground car parks relevant to operations provide the necessary illustrative material in conjunction with the specially developed graphics.
The theory of the course condensed into two pages
90 cm long and 14.7 cm high - this is how the underground car park leaflet presents itself when it is completely unfolded. For training, the format of the leaflet offers a key advantage: The critical statements on the most significant hazards in underground car park operations and the corresponding tactics and techniques are placed side by side on one page, and the fire service-relevant characteristics of underground car parks on the other.
Sequences of pictures each illustrate a problem and the solution
The grey background clearly shows which illustrations belong to a topic. One example is the threat posed to people in adjacent buildings by the heavy smoke generated by an underground car park fire. A graphic and an operational picture illustrate the problem. Below this, the tactical approach is shown: In addition to ventilating the underground car park, it may be necessary to direct emerging smoke away from the building with fans. The photo with arrows and eye symbolises the importance of reconnoitring the surrounding. Where does the smoke from the underground car park go? Where do fans need to be placed? This tactical approach has derived from the evaluation of incident reports: More people were injured in adjacent buildings than in the underground car parks affected by a fire.
The leaflet illustrates the most significant danger and the tactical procedure in case of massive smoke emission from an underground car park
Planning ventilation and the extinguishing attack are central topics in the leaflet and the intensive course on underground car parks.
Checklist for the inspection of underground car parks
The second page of the leaflet shows the characteristics of underground car parks that are relevant for fire services - such as the location of entrances and exits for vehicles and pedestrians, usages with particular hazard potential such as adjacent shops, lifts into a residential or hotel area, separated, locked storage areas and charging stations for electric vehicles. Also shown are installations that support the fire service in action, such as the fire alarm control panel, smoke extraction control, smoke extraction openings, fire doors, sprinkler and drainage systems. The overview draws attention to particular hazards and relevant infrastructure during training. It can also be used as a checklist for inspections in order to systematically record the special features of the respective underground car park.
Infrastructure of an underground car park that supports the fire service in action

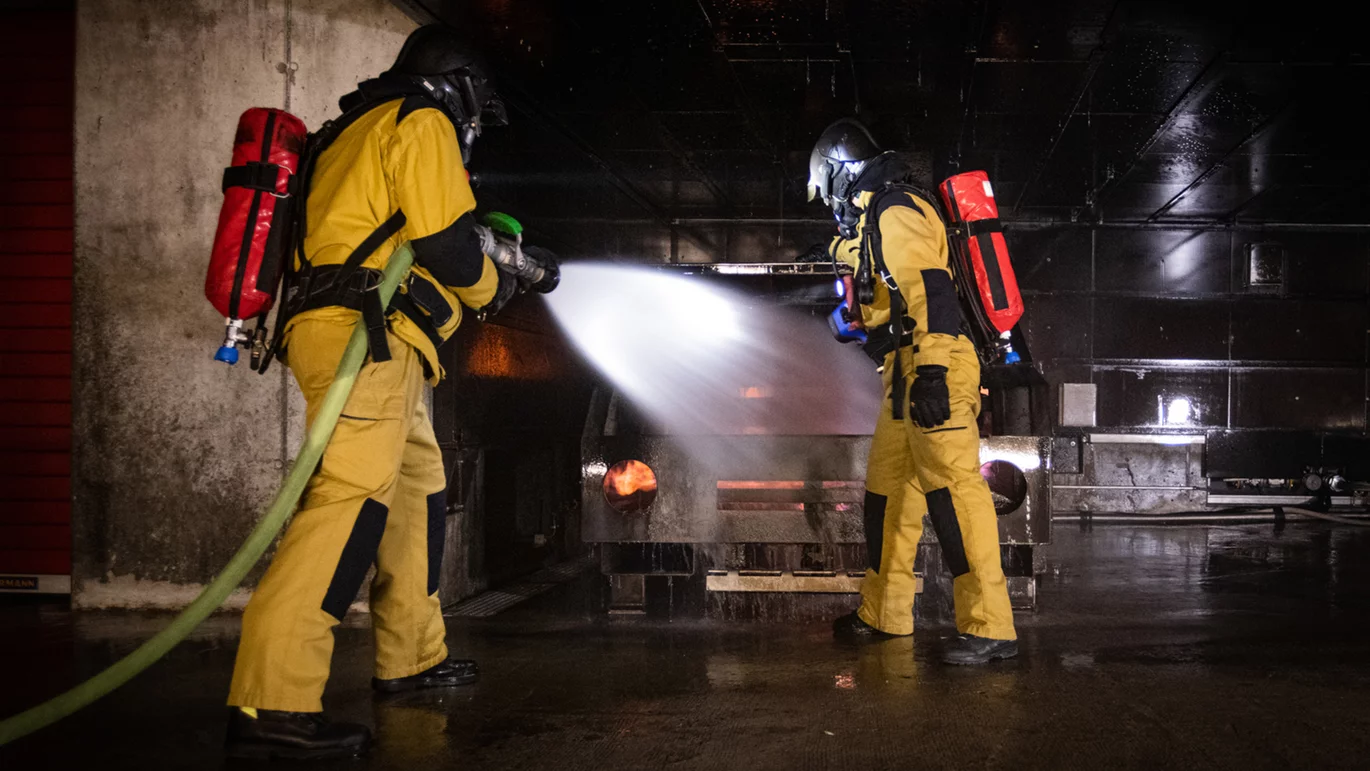

Our training car park offers a versatile world of learning and experience for operations in underground car parks
Compact and focused on the essential
Our leaflets on operations in tunnels and underground car parks are primarily a reminder for our course participants and a teaching aid for subsequent on-site training. They can be downloaded free of charge as pdf files in the «Knowledge» section (you only need to register once for this) or ordered as printed leaflets in sets of 25 copies each for use in training..
The practical application of tactics and techniques in operations is trained in our underground car park intensive course. For 2024, in addition to courses for individual fire services - for example, immediately following a tunnel training - we are planning further mixed courses for participants from several fire services. We will announce the new dates on our website.
Background knowledge on operations in underground car parks
The publication of our underground car park leaflet was preceded by intensive development work. Among other things, we evaluated many incident reports to prioritise possible hazards and define measures. Additional information is provided in our magazine article «Underground car park intensive course: Understanding tactical principles and applying them in operational training drills».
Ausserdem haben wir das Thema in unserem zweiten Online-Forum aufgegriffen. Ein Blitzlicht auf den informativen Vortrag von Christian Emrich gibt unser Magazin-Beitrag «Erkenntnisse aus dem zweiten Online-Forum vom 22. September 2021»
